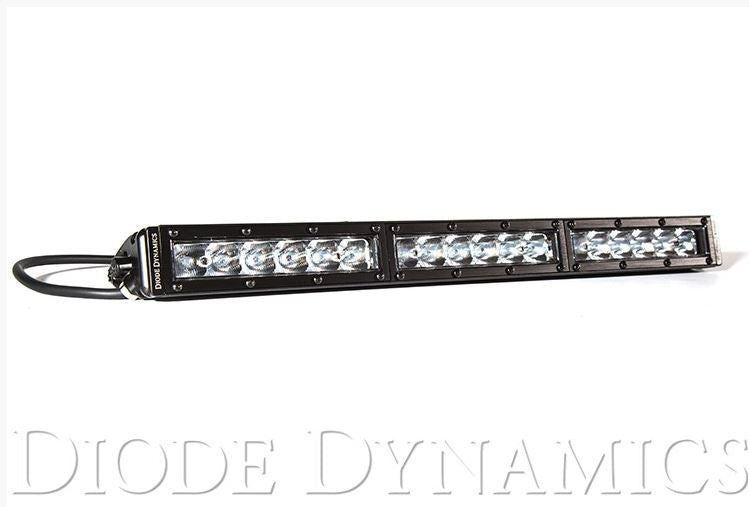

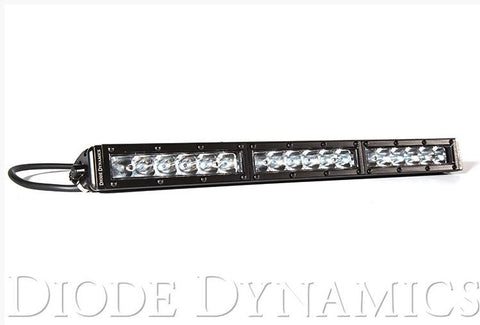

Introducing STAGE SERIES LED lighting! Inspired by the needs of a professional rally driver, these light bars have been designed for maximum functionality, with compact size, custom-engineered TIR optics, and a useful beam pattern, all in a highly durable package.

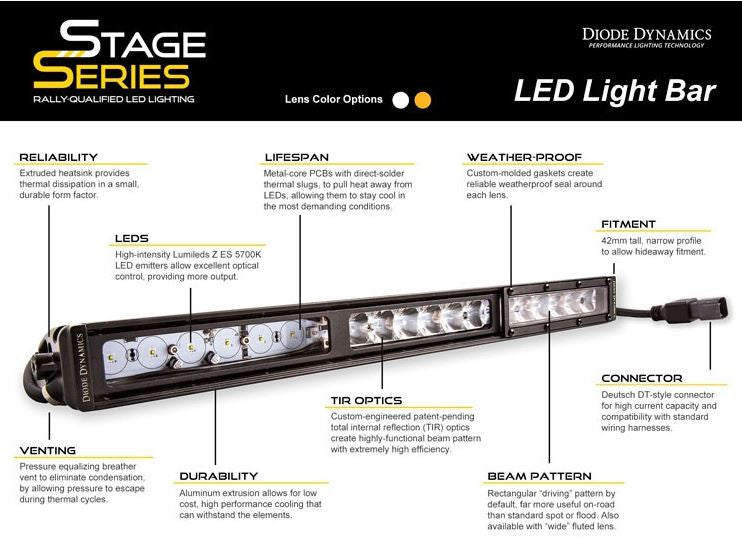

- Advanced TIR (total internal reflection) optic
- Slim design, for easy mounting
Specifications
LENS COLOR/OPTICS |
PEAK BEAM INTENSITY |
ILLUMINANCE (LUX @ 10M) |
MEASURED OUTPUT (LUMENS) |
RAW OUTPUT (LUMENS) |
OUTPUT COLOR |
---|---|---|---|---|---|
White Driving | 165,000 cd | 1,650 lux | 4,200 lm | 6,840 lm | 6000K White |
White Combo | 99,500 cd | 315 lux | 4,200 lm | 6,840 lm | 6000K White |
White Flood | 6,000 cd | 77 lux | 4,200 lm | 6,840 lm | 6000K White |
Amber Driving | 99,000 cd | 315 lux | 2,400 lm | 3,420 lm | 2000K Amber |
Amber Combo | 47,800 cd | 219 lux | 2,400 lm | 3,420 lm | 2000K Amber |
Amber Flood | 3,600 cd | 60 lux | 2,400 lm | 3,420 lm | 2000K Amber |
Color Temp (CCT): 6000K
Beam Angle: Driving, 20°x8°, Combo (Driving and Flood), Flood, 80°x50°
Power (watts): 79.8
Operating Voltage: 9-24V
Current (amps @ 14V): 5.7
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Luxeon Z ES
Connector(s): Deutsch DT Input
Materials: Aluminum PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets
Cooling: Passive, heatsink
Intrusion Ratings: IP68 Waterproof

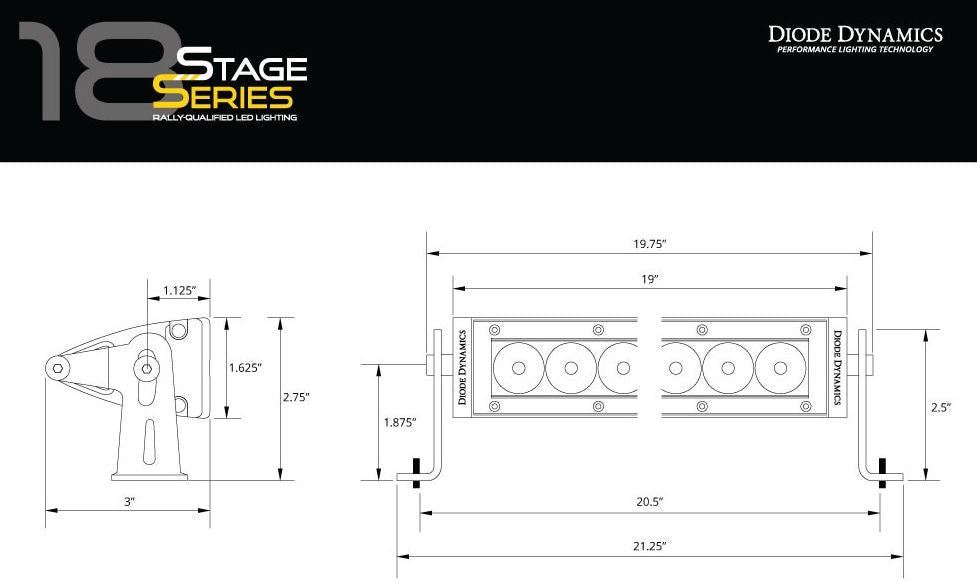

Product Dimensions (in): 19x3x1.63 If you would like CAD for your project, please contact us.
